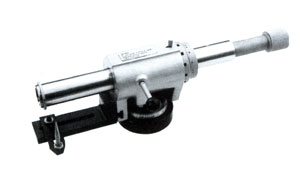

| HP-002774 AIR BEARING |
 |
|
| |
| ■ Detail |
|
|
|
| |
|
| |
| NO |
Main Technical Parameter |
| 1 |
Max stroke of air bearing sleeve |
9" |
| 2 |
Collet for workhole |
5C |
| 3 |
T slot of worktable |
12.7mm |
| 4 |
Air consumption |
6.3MPa |
| 5 |
Pipe joint |
Z1/4" |
| 6 |
Swivel |
360° |
| 7 |
Paralleelim of workhole center line to base surfce |
0.001/100mm |
| 8 |
Radius run out of workhole center line(60mm form hole) |
0.015mm | |
| |
This product is one of main attachment about type HDT30 ,it cna be used with other shapener of worktable type | |
|
|
|
