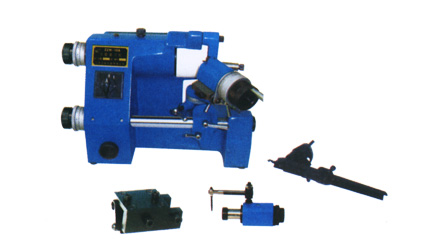

| HP-002770 ZZM-10A CUTTER SHARPENER |
 |
|
| |
| ■ Detail |
|
|
|
| |
|
| |
|
NO |
Main techical parameter |
公制MM |
英制INCH |
| 1 |
Wheel Diameter |
100 |
4 |
| Thickness |
50 |
2 |
| Hole size |
20 |
3/4 |
| 2 |
Spindle sp |
5200rpm |
5200rpm |
| 3 |
Collet clamping diameter range |
3～16 |
1/8～5/8 |
| 4 |
Tool post longitudinal travel |
140 |
5-1/2 |
| 5 |
tool post longitudinal mircro adjustment |
18 |
3/4 |
| 6 |
spindle longitudinal mircro adjustment |
8 |
1/3 |
| 7 |
Grinding taper range |
0°～180° |
| 8 |
Grinding negative angle range |
0°～52° |
| 9 |
Grinding relief range |
0°～44° | |
| |
TYPE ZZM－10A cutter shapener is applicable to grind milling cutter of all kinds of diameter,shopers and angles for die sinker,also to die pin corres ponding to the miller according to die sinker scale, it has ability of grinding turning tool,drill.So it is an necessary equipment in using die sinker with excellent figuration,new structure and good application | |
|
|
|
