| HP-00270 PF70/5C SPIN INDEX |
 |
|
| |
| ■ Detail |
|
|
|
|
| |
|
| |
|
Model |
PF70/5C |
| Height of centre |
70mm 2-3/4" |
| Radial run-out of spindle outer taper |
0.010mm 0.0004" |
| Radil run-out of center hole(measured from spindle nose 25mm/0.98") |
0.03mm 0.0012" |
| Parallelism of centre line of spindle to base surface |
0.02mm 0.008" |
| Individual spacing dividing accuracy |
±4 | |
| |
1.This unit is one of the important accessory units for such machine tools as drill,miller, and grinder etc.and with the assitance of thisunit, the machine tools will be able to accomplish such operations as index machining of verious angular parts and set line drawing of parts,etc.

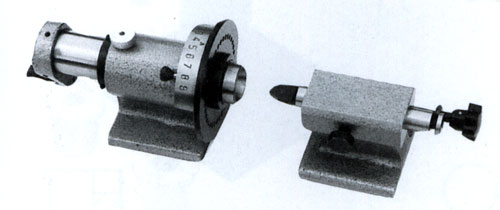

2.This unit can be used separately or to complete a set with PF70/5C type centre | |
|
|
|
