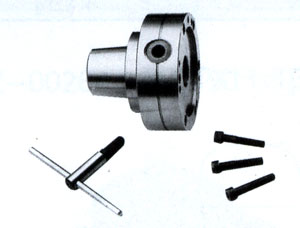

| HP-00269 5C COLLET BLOCK SET |
 |
|
| |
| ■ Detail |
|
|
|
| |
|
| |
|
Model |
3911-125-5C-00 |
| Clamping range |
Round |
1～28mm |
3/64"～1-1/8" |
| Square |
3～19mm |
1/8"～3/4 |
| Hex |
1～28mm |
1/8"～7/8" |
| Dmm |
126 |
| D0mm |
95 |
| lmm |
107 |
| Wt |
4.5 | |
| |
5C collet is fit for this device, which can clamp tool or workpiece with different diameter and figure, It can be fixed on lathe, milling machine, grinder,and other special equipment, with such features as high precision, easy operation, safe application, strong clamping,etc | |
|
|
|
