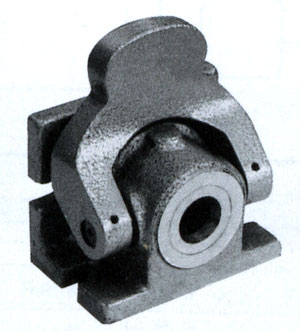

| ZZ-00267 TYPE D 5C COLLET FIXTURE |
 |
|
| |
| ■ Detail |
|
|
|
| |
|
| |
|
Model |
5CC |
| Height of centre(horizontal) |
60mm 2.36" |
| Height (horizontal) |
7.16" |
| Height (vertical) |
4.13" |
| Size of base(horizontal) |
6.10"×4.03" |
| Size of base(vertical) |
6.10"×4.72" |
| |
parallelism of spindle to base surface(horizontal) |
0.020mm 0.0008" |
| vertical of centre line of spindle to base surface(vertical) |
0.020mm 0.0008" |
| Wt |
8.2kg | | |
|
|
|
