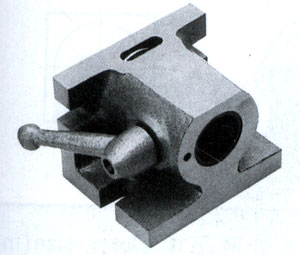

| ZZ-00266 TYPE C 5C COLLET FIXTURE |
 |
|
| |
| ■ Detail |
|
|
|
| |
|
| |
|
Model |
5CC |
| Height of centre(horizontal) |
64mm 2.52" |
| Height (horizontal) |
3.74" |
| Height (vertical) |
4.13" |
| Size of base(horizontal) |
5"×4.13" |
| Size of base(vertical) |
5"×3.74" |
| |
parallelism of spindle to base surface(horizontal) |
0.020mm 0.0008" |
| vertical of centre line of spindle to base surface(vertical) |
0.020mm 0.0008" |
| Wt |
4.82kg | | |
|
|
|
