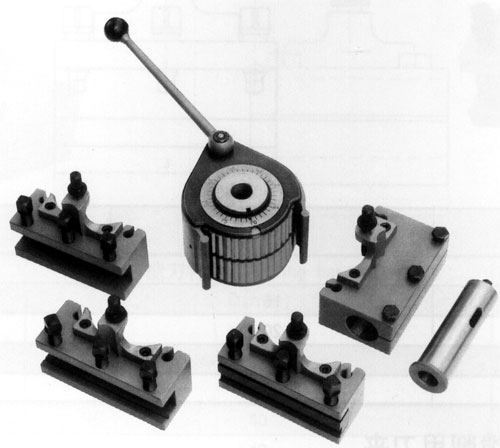

| ZZ-00308 QUICK CHANGE TOOL POST AND TOOL HOLDERS |
 |
|
| |
| ■ Detail |
|
|
|
| |
|
| |
| Model |
Swing Dia |
Wt(kg) |
| in |
mm |
| A0 |
4.75-8.66 |
120-220 |
0.34 |
| A1 |
6-13 |
152-330 |
1.32 |
| E5 |
10-18 |
254-457 |
4.05 |
| B2 |
13-20 |
330-508 |
10.0 |
| C3 |
18-30 |
457-762 |
17.0 | |
| |
1.Cam-Lock handle rigidly locks & quickly releases tool holker
2.Correct height of cutting edage is easily & accurately adjusted by special set screws
3.Tools can be re-ground without removal form tool bolker setting remains unaltins unaltered
4.40 different angles (every 9°)are conveniently selected form position dials with marker
5.Holders are interchangeable with most other brand 40 position tool post | |
|
|
|
