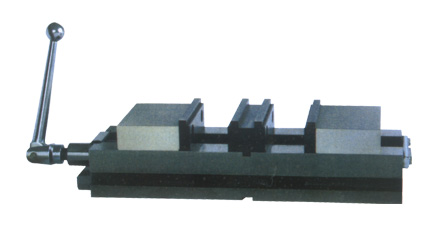

Performance and characterist: |
|
1.It is made of spheroidal cast iron. |
|
2.The hardness of woaking surface is HRC50-60 |
|
3.The vice with angle locked vice can prevent workpieces rising during operation |
|
4.It is possessed of two clamping positions,two workpieces of same sixe or of different sixe can be clamped whith it the vice is also able to ciamp two same workpieces which are clamped in different positions and processed in different surfaces. |
|
5.Parllelism 0.025mm/100mm,squareness 0.025mm |
|
6.The vice can be using with single or setting side by side on the machine table |
|
7.It is widely used on machining center and othr precision machine tools. |
|
Order No. |
Width of Jaw mm |
Height of Jaw mm |
Max.Opening mm |
GW./NW. kg |
Packing Shape |
L*W*H cm |
Q93100 |
100 |
35 |
76 |
19/17 |
wooden case |
58*18*16.5 |
Q93160 |
160 |
50 |
100 |
54/47 |
wooden case |
73*28*20 | |
