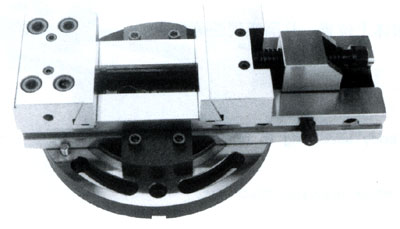

| ZZ-003372 QUICK ACTION PRECISION MODULAR VISES |
 |
|
| |
| ■ Detail |
|
 |
 |
| Model |
B(mm) |
H(mm) |
Smax(mm) |
L(mm) |
Clamping force(kg) |
| GT125-IV |
125 |
40 |
150 |
345 |
3000 |
| GT150A-IV |
150 |
50 |
200 |
420 |
5000 |
| GT150B-IV |
150 |
50 |
300 |
520 |
5000 |
| GT175C-IV |
175 |
60 |
400 |
655 |
6000 | |
1、Made of high-quality carburizing alloy steel
2、Parallelism and squareness within 0.005/100mm
3、Locate position by pilot pin,adjust pin on body according to openning size, then clamp quickly
4、It is widely used on maching centers and other precision machines | |
|
|
|
