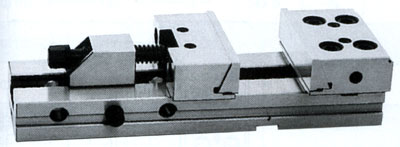

| ZZ-003370 QUICK ACTION PRECISION MODULAR VISES |
 |
|
| |
| ■ Detail |
|
1、Made of high-quanlity carburizing alloy steel.
2、Parallelism and squareness within 0.005mm/100mm.
3、Locate position by pilot pin, adjust pin on body according to openning size , then clamp quickly.
4、It is widely used on machining centers and other precision machines. |
 |
 |
| Model |
B(mm) |
H(mm) |
Smax(mm) |
L(mm) |
Clamping force(kg) |
| GT125-III |
125 |
40 |
150 |
345 |
3000 |
| GT150A-III |
150 |
50 |
200 |
420 |
5000 |
| GT150B-III |
150 |
50 |
300 |
520 |
5000 |
| GT175C-III |
175 |
60 |
400 |
655 |
6000 | | |
|
|
|
