1、Made of high-quanlity alloy steel
2、The accuracy of vise（prallelism and squareness）is 0.005mm/100mm
3、The hardness of working surface is HRC 58-62 and precision ground to a mirror finish
4、It have interchangeable base , fixed/movable jaws it is quickly to clamp and easy to operate
5、It is widely used on machine center and other precision machine tools |

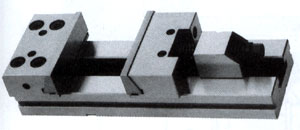

 I PRECISION MODULAR VISES |
 |
 |
 |
| Model |
B(mm) |
H(mm) |
Smax(mm) |
L(mm) |
Clamping force(kg) |
Wt(kg) |
| GT100-I |
100 |
30 |
100 |
270 |
3000 |
7 |
| GT125-I |
125 |
40 |
150 |
345 |
3000 |
12.7 |
| GT150A-I |
150 |
50 |
200 |
420 |
5000 |
25.6 |
| GT150B-I |
150 |
50 |
300 |
520 |
5000 |
29.5 |
| GT175A-I |
175 |
60 |
200 |
455 |
6000 |
33.8 |
| GT175B-I |
175 |
60 |
300 |
555 |
6000 |
42.5 |
| GT175C-I |
175 |
60 |
400 |
655 |
6000 |
51.2 |
| GT200A-I |
200 |
65 |
200 |
495 |
10000 |
57 |
| GT200B-I |
200 |
65 |
300 |
595 |
10000 |
64 |
| GT200C-I |
200 |
65 |
400 |
695 |
10000 |
71 | |
| II PRECISION MODULAR VISES WITH SWIVEL BASE |
 |
 |
| |
| Model |
B(mm) |
H(mm) |
Smax(mm) |
L(mm) |
Clamping force(kg) |
Wt(kg) |
| GT100-II |
100 |
30 |
100 |
270 |
3000 |
10.30 |
| GT125-II |
125 |
40 |
150 |
345 |
3000 |
18.20 |
| GT150A-II |
150 |
50 |
200 |
420 |
5000 |
36.40 |
| GT150B-II |
150 |
50 |
300 |
520 |
5000 |
40.30 |
| GT175A-II |
175 |
60 |
200 |
455 |
6000 |
44.60 |
| GT175B-II |
175 |
60 |
300 |
555 |
6000 |
55.50 |
| GT175C-II |
175 |
60 |
400 |
655 |
6000 |
64.20 |
| GT200A-II |
200 |
65 |
200 |
495 |
10000 |
78.00 |
| GT200B-II |
200 |
65 |
300 |
595 |
10000 |
85.00 |
| GT200C-II |
200 |
65 |
400 |
695 |
10000 |
92.00 | |
