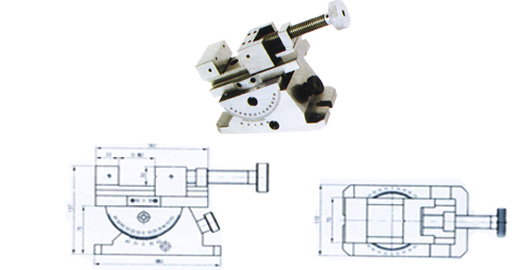

| ZZ-003356 PRECISION UNIVERSAL VISE |
 |
|
| |
| ■ Detail |
|
|
Product introduction |
| |
The vise is made of two parts:vise body and swivel base.Horizontal swivel goes through 360°,45°angle tilts vertically.The accurate graduations and three-way swiveling feature make it greatly suitable for straight,inclined surface or angular surface machining and drilling on grinders and milling machines. |
| |
|
| |
 |
| |
|
| |
| Order No. |
Jaw Width |
Max.Opening |
Jaw Height |
Outside size |
| CHM80 |
70mm |
80mm |
30mm |
195*110*137mm | | |
|
|
|
