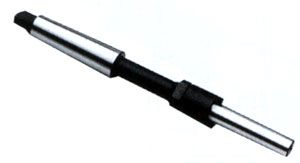

| ZZ-00368 MORSE TAPER SHANK SHELL REAMER ARBORS WITH JK TYPE |
 |
|
| |
| ■ Detail |
|
|
|
|
|
| 英制INCH |
|
Model |
MS.NO |
D |
E |
Fits shell reamer |
L(in) |
| JK2x3/8 |
2 |
3/8 |
2-1/4 |
21/32～25/32 |
9 |
| JK2x1/2 |
1/2 |
2-1/2 |
13/16～1-1/32 |
9-1/2 |
| JK3x5/8 |
3 |
5/8 |
2-3/4 |
1-1/16～1-5/8 |
10 |
| JK3x3/4 |
3/4 |
3 |
1-5/16～1-5/8 |
11 |
| JK4x1 |
4 |
1 |
3-1/2 |
1-11/16～2 |
12 |
| JK4x1-1x4 |
1-1/4 |
3-3/4 |
2-1/16～2-1/2 |
13 |
| JK5x1-1/2 |
5 |
1-1/2 |
4 |
2-9/16～3 |
14 |
| JK5x1-3/4 |
1-3/4 |
4-1/2 |
3-1/16～3-1/2 |
15 |
| JK5x2 |
2 |
5 |
3-9/16～4 |
16 | |
| 公制mm |
|
Model |
MS.NO |
D |
E |
Fits shell reamer |
L(in) |
| JK3x13 |
3
|
13 |
43.8 |
23.6～25/32 |
250 |
| JK3x16 |
16 |
48.8 |
30～45 |
261 |
| JK4x19 |
4 |
19 |
54.4 |
35.5～53 |
298 |
| JK4x22 |
22 |
61.4 |
42.5～63 |
312 |
| JK5x27 |
5 |
27 |
69.4 |
50.8～75 |
359 |
| JK5x32 |
32 |
78 |
60～90 |
376 |
| JK5x40 |
40 |
88 |
71～101.6 |
396 |
| JK5x50 |
50 |
97.5 |
85～101.6 |
416 | | |
|
|
|
