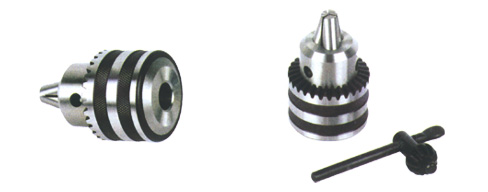

Welcome to our website ZZ-00102 　KEY TYPE LRILL CHUCK   ■ Detail Product introduction   1.Suitable for medium、heavy duty drilling use.   2.For milling machine、lathe、drilling machine、wood working machine.   3.High speed drilling can be performed for possessing high griping power.           Order No Capacity Mount D mm L mm Wt.(kg) mm in J2110 1-10 1/32-3/8 B12 42.5 70 0.34 J2113 1-13 1/32-1/2 B16 53 86 0.63 J2513 1.5-13 1/16-1/2 B16 44 78 0.45 J2516 3-16 1/8-5/8 B16 53 86 0.63 J2516A 3-16 1/8-5/8 B18 53 86 0.63 J2116 3-16 1/32-5/8 B18 57 98 1.00 J2116A 1-16 1/32-5/8 B16 57 93 0.82 J2120 5-20 3/16-3/4 B22 65 110 1.40 J2210 1-10 1/32-3/8 JT2 42.5 70 0.34 J2213 1-13 1/32-1/2 JT6 53 86 0.63 J2213A 1-13 1/32-1/2 JT33 53 86 0.63 J2613 1.5-13 1/16-1/2 JT33 44 78 0.45 J2616 3-16 1/8-5/8 JT3 53 86 0.63 J2616A 3-16 1/8-5/8 JT6 53 86 0.63 J2616B 3-16 1/8-5/8 JT33 53 93 0.65 J2216 1-16 1/32-5/8 JT3 57 98 1.00 J2220 5-20 3/16-3/4 JT3 65 110 1.40     Qingdao High Peak Machinery Co., Ltd TEL：86 532 86927707 FAX：86 532 85623132 E-mail：sales@highpeakmachinery.com
