TECHNICAL INSTRUCTION |
| |

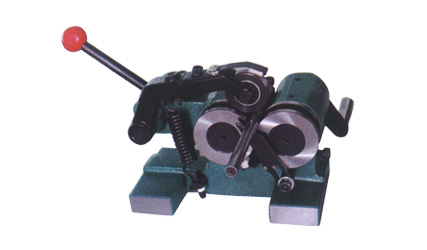

1.Punch grinder is a tool which can be put on the surface of grinding machine for grinding punches.It can do cylidrical grinding automatically. |
| |
2.The rollers cha be used to adjust the workpiece before grinding. |
| |
3.When during heavy grinding,use screw pressure for firm holding as shown in the picture |
| |
4.Accuracy of roller is within 0.005mm.It can grind punches of outside diameter from |
| |
1.5～30mm, extended grinding length is within 5～35mm |
| |
|
| |
|
