Main Technical Data: |
|
| |
Center height：80mm |
Clamping diameter in V-slot：4-30mm |
| |
Travel of V-block：25mm |
Transversal travel of slide：±12.5mm |
| |
Quantity of tooth：24 |
Max wheel diameter ：200mm |
| |
Max radius when dressing arc：
Convex:R50mm
Concave:R100mm
|
Outside size：360*116*145mm |
| |

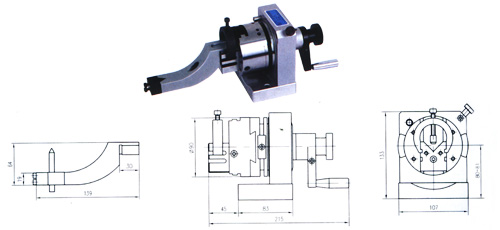

PUNCH FORMER is applicable on surface grinder or universal grinder for grinding round , radius and multi-angle points of punches and for precisely EDM electrode.With is radius dresser arm,it is able to dress wheels to different straight, arc profiles. |
| |
Punch forming application: |
Grinding wheel dressing application: |
| |
 |
 |
