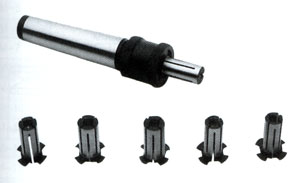

| ZZ-00144 MKB241 EXPANDING MANDRELS AND SLEEVES |
 |
|
| |
| ■ Detail |
|
|
|
| |
|
| |
| Model |
D |
C |
MS.NO |
L |
L1 |
Sleeves |
Extensibility |
| MKB241-00 |
5.5-7 |
19.5 |
2 3 4 |
110 127 150 |
12 |
4 |
0.5 |
| MKB241-01 |
7.5-9 |
23 |
118.5 135.5 158.5 |
16 |
| MKB241-02 |
9.5-11.5 |
28 |
123.5 140.5 163.5 |
20 |
5 |
| MKB241-03 |
12-14.5 |
31 |
131.5 148.5 171.5 |
26 |
6 |
| MKB241-04 |
14.5-19 |
38 |
136.5 153.5 176.5 |
30 |
10 |
| MKB241-05 |
19.5-24.5 |
47 |
3 4 |
159.5 182.5 |
36 |
11 |
| MKB241-06 |
24.7-28.7 |
69 |
177 200 |
42.5 |
5 |
1 |
| MKB241-07 |
29.7-33.7 |
72 |
180.5 203.5 |
46 |
| MKB241-08 |
34.7-38.7 |
79 |
4 |
210 |
52.5 |
| MKB241-09 |
39.7-43.7 |
87 |
215.5 |
58 |
| MKB241-10 |
44.7-53.7 |
96 |
239 |
76.5 |
10 |
| MKB241-11 |
54.7-63.7 |
107 |
250.5 |
85 |
| MKB241-12 |
64.7-78.7 |
130 |
263.5 |
96 |
15 | | |
|
|
|
