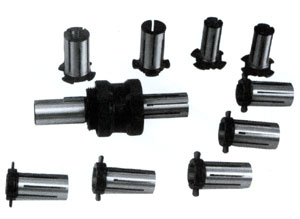

| ZZ-00143 MZB241 EXPANDING MANDRELS |
 |
|
| |
| ■ Detail |
|
|
|
| |
|
| |
| Model |
D |
E |
L |
d |
G |
Sleeves |
Extensibility |
| MZB241-00 |
5.5-7 |
12 |
74.5 |
10 |
19.5 |
4 |
0.5 |
| MZB241-01 |
7.5-9 |
16 |
79.5 |
12 |
23 |
| MZB241-02 |
9.5-11.5 |
20 |
89.5 |
28 |
5 |
| MZB241-03 |
12-14.5 |
26 |
97.5 |
14 |
31 |
6 |
| MZB241-04 |
14.5-19 |
30 |
102.5 |
18 |
38 |
10 |
| MZB241-05 |
19.5-24.5 |
36 |
113.5 |
20 |
47 |
11 |
| MZB241-06 |
24.7-28.7 |
42.5 |
136 |
25 |
69 |
5 |
1 |
| MZB241-07 |
29.7-33.7 |
46 |
144.5 |
30 |
72 |
| MZB241-08 |
34.7-38.7 |
52.5 |
156 |
40 |
79 |
| MZB241-09 |
39.7-43.7 |
58 |
166.5 |
87 |
| MZB241-10 |
44.7-53.7 |
76.5 |
197 |
45 |
96 |
10 |
| MZB241-11 |
54.7-63.7 |
85 |
208.5 |
50 |
107 |
| MZB241-12 |
64.7-78.7 |
96 |
221.5 |
130 |
15 | | |
|
|
|
