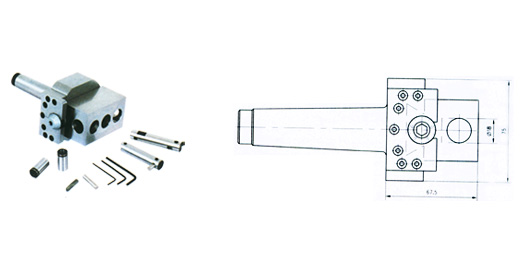

| ZZ-00135 F1A-18 PRECISION BORING HEAD |
 |
|
| |
| ■ Detail |
|
|
Product introduction |
| |
F1A-18 boring head is mainly used for milling machine, boring machine ,it can machine different sizes of holes conveniently, the cutting amount can be adjustable and the diameter of the hole can be controlled accurately and reliably.It is indispensable for different milling machine and boring machine. |
| |
|
| |
 |
| |
|
| |
| Model |
Max.boring diameter |
Boring bar hole size |
Fine feed per graduation |
Max.stroke of slide block |
| F1A-18 |
160 |
18 |
0.02 |
25 | |
| |
| Order No. |
Specification |
Order No. |
Specification |
| F1A-18-R8 |
7/16"*20UNF |
F1A-18-MS4 |
舌尾型 tanged |
| F1A-18-MW3 |
M12 |
F1A-18-MS5 |
舌尾型 tanged |
| F1A-18-MW31 |
1/2"*13UNC |
F1A-18-30 |
M12 |
| F1A-18-MW4 |
M16 |
F1A-18-301 |
1/"2*12UNC |
| F1A-18-MW41 |
5/8"*11UNC |
F1A-18-40 |
M16 |
| F1A-18-MW5 |
M20 |
F1A-18-401 |
5/8"*11UNC |
| F1A-18-MW51 |
3/4"*10UNC |
F1A-18-50 |
M24 |
| F1A-18-MS3 |
舌尾型 tanged |
F1A-18-501 |
1"*8UNC | |
| |
| |
|
| |
|
|
|
