| ZZ-00116 J46 REVERSIBLE TAP HOLDER |
 |
|
| |

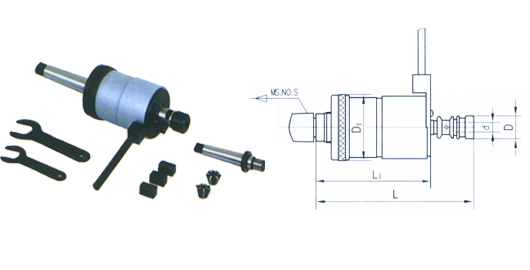

| ■ Detail |
|
|
|
| Model |
Tapping range |
d |
D |
D1 |
L |
L1 |
MS.NO.S |
| J467 |
M2-M7 |
2.5-6.5 |
23 |
55 |
135 |
95 |
MS1-JT33 MS3-JT33 |
| J4612 |
M5-M12 |
3.5-10 |
28 |
75 |
164 |
114.5 |
MS3-M16 MS4-M16 |
| J4620 |
M8－M20 |
6.3-14 |
38 |
90.5 |
205 |
135 |
MS3-M20 MS4-M20 |  |
| |
1.Overload protection
2.Adjustable torque
3.Reverse device:self-reversing without need for stopping and reversing the spindle,faser withdrawal
4.Simple operation | |
|
|
|
