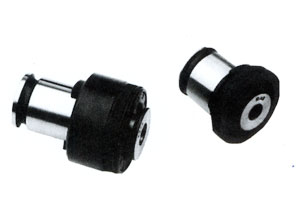

| ZZ-00114 TAPPING COLLETS |
 |
|
| |
| ■ Detail |
|
|
|
| |
|
| |
Model
D × a |
d(mm) |
DIN371 |
DIN374 |
DIN376 |
| 3.5×2.7 |
19 |
|
M3 |
M5 |
M5 |
| 4×3 |
M3.5 |
|
|
| 4.5×3.4 |
M4 |
M6 |
|
| 6×4.9 |
M5 |
M6 |
|
| M6 |
|
|
| |
M8 |
M8 |
| 7×5.5 |
31 |
|
M10 |
M10 |
| 8×6.2 |
M8 |
|
|
| 9×7 |
|
M12 |
M12 |
| 10×8 |
M10 |
|
|
| 11×9 |
48 |
|
M14 |
M14 |
| 12×9 |
|
M16 |
M16 |
| 14×11 |
|
M18 |
M18 |
| 16×12 |
|
M20 |
M20 |
| 18×14.5 |
|
|
M22 |
M22 |
| |
M24 |
M24 |
| 20×16 |
|
M27 |
M27 |
| 22×18 |
|
M30 |
M30 |
| 25×20 |
|
M33 |
M33 |
| 28×22 |
|
M36 |
M36 | |
| |
With overload protection device inside the chucks torque adjustable
Show the specification in the order, with diameter of shank in the form as 19-3.5×2.7-II | |
|
|
|
