| ZZ-00110 J52 TAP CHUCK |
 |
|
| |
| ■ Detail |
|

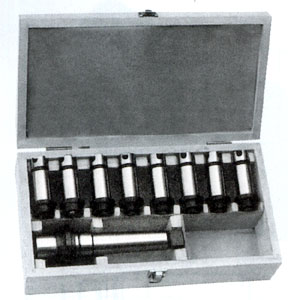

| This unit is consisted of chuck shank,drill adaptor(drill chuck arbor,Morse taper adaptor)and tap adaptor,By pushing the lock bush,drill and tap adaptor can be changed quickly.It is especially suitable to lather,drillier and boring machine.This device has many features such as quick tools chaning,easy operation and so on. |
|
|
| |
|
| |
 |
| |
| Model |
D(mm) |
d(mm) |
MS.NO.S |
L(mm) |
Tapping range |
MS.NO.T |
| A |
B |
C |
| J5212 |
57 |
25 |
3 |
192 |
206 |
206 |
M3-M12 |
MS2 |
| J5216 |
4 |
218 |
232 |
232 |
M5-M16 |
| 5 |
250 |
264 |
264 |
| J5224 |
82 |
40 |
4 |
270 |
265 |
278 |
M12-M24 |
MS2
MS3 |
| 5 |
302 |
297 |
310 | | |
|
|
|
