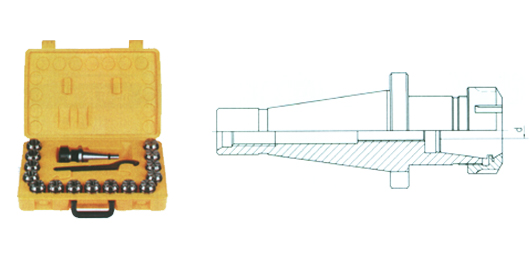

| ZZ-00086 J7325(DIN6388-EOC25A)MILLING CHUCK SET |
 |
|
| |
| ■ Detail |
|
|
Product introduction |
| |
|
|
|
J7320（DIN6388-EOC20A）
 |
| J7325（DIN6388-EOC25A） |
| Model |
Pcs/set |
d |
Shank |
Wt(Kg) |
| mm |
in |
| R8-J7325/8mm(in) |
8 |
3 5 8
12 15 18
22 25 |
1/8 1/4
3/8 1/2
5/8 3/4
7/8 1 |
R8 |
3.58 |
| 30-J7325/8mm(in) |
ISO30 |
2.52 |
| 40-J7325/8mm(in) |
ISO40 |
2.61 |
| 45-J7325/8mm(in) |
ISO45 |
3.09 |
| 50-J7325/8mm(in) |
ISO50 |
3.92 |
| MS3-J7325/8mm(in) |
MS3 |
2.32 |
| MS4-J7325/8mm(in) |
MS4 |
2.57 |
| MS5-J7325/8mm(in) |
MS5 |
3.48 |
| 1"-J7325/mm(in) |
1" |
2.18 |
| 11-/4"-J7325/8mm(in) |
1-1/4" |
3.78 |
| R8-J73125/15mm(in) |
15 |
3 4 5
6 8 10
12 14 15
16 18 20
22 24 25 |
1/8 3/16
1/4 5/16
3/8 7/16
1/2 9/16
5/8 11/16
3/4 13/16
7/8 15/16
1 |
R8 |
4.42 |
| 30-J73125/15mm(in) |
ISO30 |
3.37 |
| 40-J73125/15mm(in) |
ISO40 |
3.71 |
| 45-J73125/15mm(in) |
ISO45 |
4.29 |
| 50-J73125/15mm(in) |
ISO50 |
5.11 |
| MS3-J73125/15mm(in) |
MS3 |
3.52 |
| MS4-J73125/15mm(in) |
MS4 |
3.75 |
| MS5-J73125/15mm(in) |
MS5 |
4.65 |
| 1"-J73125/15mm(in) |
1" |
3.43 |
| 1-1/4"-J73125/15mm(in) |
1-1/4" |
3.80 | Thread of draw bar
 |
| |
1.Please notify the thread of collet chuck draw bar and the specification of |
| |
collets(metric of inch) |
| |
2.Please notify the length of straight shank and dia |
| |
3.We are glad to supply collets and chucks with different shank and quantities according |
| |
to your requirement |
| | |
|
|
|
